LoRaWAN1301:嵌入式小体积 前端LoRaWAN网关模块 内置TCXO晶振

LoRaWAN1301是思为无线推出的一款小体积和SPI接口的LoRaWAN网关前端模块。该模块采用sx1301,SX1255/SX1257芯片方案,基于Semtech官网标准设计。内置TCXO晶振,支持433/470/868/915MHz各种频段,也可以定制其他特定频率。
LoRaWAN1301产品严格使用无铅工艺生产和测试,均符合RoHS和Reach的标准。

联系我们

分享产品:

规格书&附件下载

产品规格书:LoRaWAN1301 front-end LoRaWAN Gateway module data sheet V1.2.pdf

性能参数
特点&应用
内部框图
引脚定义
机械尺寸(单位:mm)
Parameter Min Typ.  Max Unite Condition
Working Condition
Working voltage range 2.9 5.0 5.5 V
Temperature voltage -40   85
Current Consumption
Receiving current   <340   mA @9 channels all open
Transmitting current   <480   mA @24dBm
Sleep current   <35   mA
Parameter
Frequency range 429 433 440 MHz @433MHz
470 480 490 MHz @470MHz
860.75 868.3 874.5 MHz @868MHz
902 915 928 MHz @915MHz
Output power  0   24 dBm
Receiving sensitivity   -133   dBm @SF=10,,BW=125kHz

产品特点

  • LoRa long range module technology
  • Half-duplex
  • Simultaneously receive LoRa packets
  • Dual digital Tx & Rx radio front-end
  • Dynamic data-rate adaptation (ADR)
  • Multi LoRa Spreading Factor
  • Maximum 10 channels
  • 8 x Multi SF LoRa channels (SF7 to SF12 with125kHz Bandwidth)
  • 1x LoRa channel (Bandwidth 125/250/500kHz)
  • 1 x FSK channel

应用领域

  • Smart city
  • Smart Metering ( Water, Electric, Gas meter )
  • Agricultural Monitoring
  • Irrigation control
  • Internet of Things (IoT)
  • M2M
  • Wireless Sensors
  • Wireless Alarm and Security Systems

LoRaWAN网关模块LoRaWAN1301的内部框图

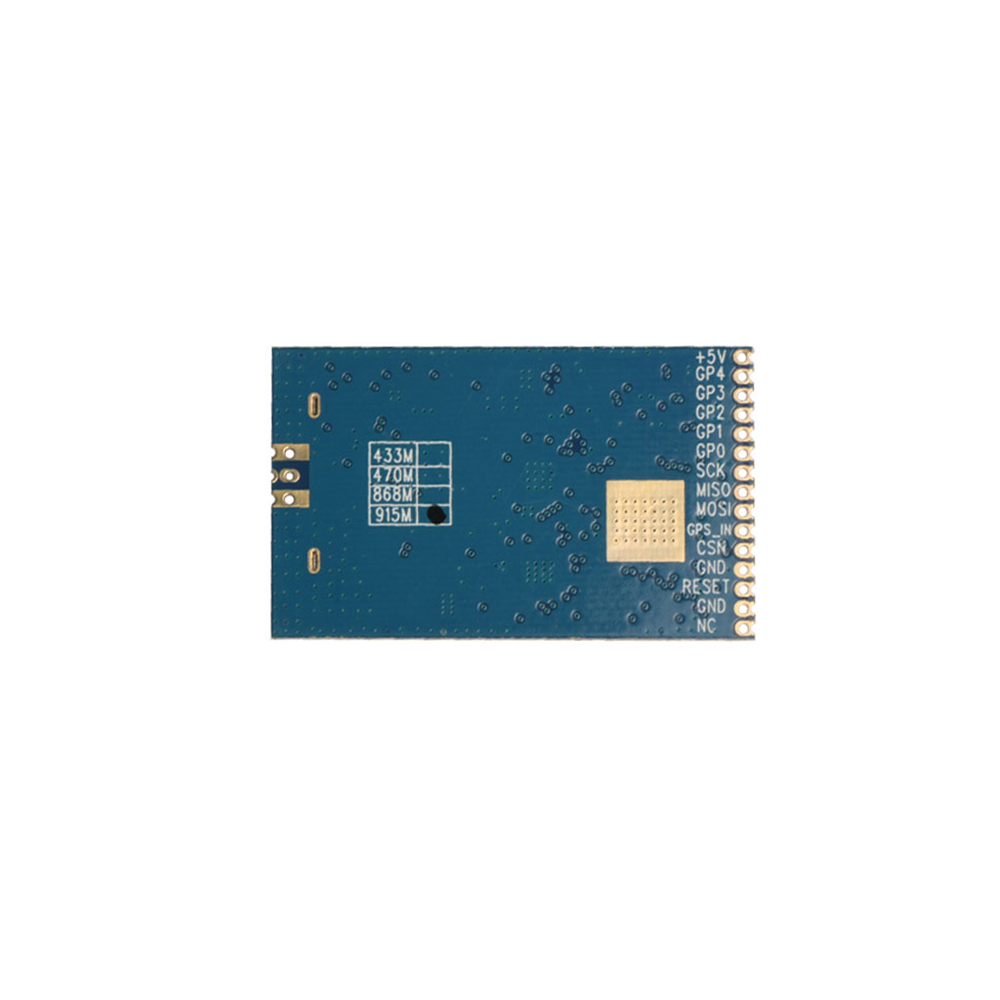

LoRaWAN网关模块LoRaWAN1301的引脚

Pin Definition Type Description
1 +5V Power (VCC) Power Supply
2 GPIO4 Input/Output







GPIO of SX1301

3 GPIO3 Input/Output
4 GPIO2 Input/Output
5 GPIO1 Input/Output
6 GPIO0 Input/Output
7 SCK Input SCK of SX1301 (max 10 MHz clock)
8 MISO Output MISO of SX1301
9 MOSI Input MOSI of SX1301
10 GPS_IN Input GPS_IN of SX1301
11 CSN Input CSN of SX1301
12 GND Power (GND) Ground
13 RESET Input Reset of SX1301
14 GND Power (GND) Ground
15 NC   Reserved
16 GND GND of antenna
17 Antenna Antenna
18 GND GND of antenna
