LG1301-SE:UART接口 远距离LoRaWAN网关

LG1301-SE是LoRaWAN网关。它仅适用于LoRaWAN节点LN610,并且集成了标准LoRaWAN Class C通信协议V1.0 。

当LG1301-SE接收到LN610的数据时,LG1301-SE会将RF数据和LN610的设备地址输出到串行接口。当将具有目标LN610的设备地址的串行数据输入到LG1301-SE时,它将串行数据发送至目标LN610。

所有无线通信均符合LoRaWAN协议。无需了解LoRaWAN的工作原理即可轻松构建LoRaWAN网络。

联系我们

分享产品:

规格书&附件下载

产品规格书:LG1301-SE lorawan gateway datasheet V1.1.pdf

其它附件:NiceRF_LG1301_SE.rar

其它附件:UART Protocol of NiceRF LoRaWAN Gateway(LG1301_SE) v1.0.pdf

性能参数
特点&应用
内部框图
引脚定义
机械尺寸(单位:mm)
Parameter Min Typ.  Max Unite Condition
Working Condition
Working voltage range 5 12 30 V
Temperature voltage -40   85
Current Consumption
Receiving current   <280   mA @12v,9 channels all open
Transmitting current   <450   mA @12v,TX=24dBm
Parameter
Frequency range 429 433 440 MHz @433MHz
470 480 490 MHz @470MHz
860.75 868.3 874.5 MHz @868MHz
902 915 928 MHz @915MHz
Output power  0   24 dBm
Receiving sensitivity   -133   dBm @SF=10,,BW=125kHz

★ Note: the following parameters is VCC = 3.3, with 50 ohm copper axis test instrumentation.

产品特点

  • LoRaWAN protocol supported
  • Uart interface
  • AES128 encryption
  • 8 channel communication simultaneously
  • Configurable parameters
  • OTAA & ABP
  • Long range
  • ADR
  • EU433M / EU868M / KR920M / AS923M / CN780M/ CN470M / US915M / AS915M

应用领域

  • Smart city
  • Smart Metering ( Water, Electric, Gas meter )
  • Agricultural Monitoring
  • Irrigation control
  • Internet of Things (IoT)
  • M2M
  • Wireless Sensors
  • Wireless Alarm and Security Systems

LoRaWAN网关LG1301-SE的内部框图

LoRaWAN网关LG1301-SE的引脚定义

No. Definition Description
1 SET Press to enter/exit setting mode
2 Power In Voltage input DC 5~30V
3 Data interface TTL or RS232 ,RS485 Interface Three choices
4 Micro USB System parameter configuration
5 Power LED Green LED , indication of powered on
6 LED for Tx/Rx Red LED blinks once when Tx one packet and Blue led blinks once when one packet is received and verified OK.
7 LED for Status Light on in setting mode, and blinks once per second in normal mode
8 Antenna Connected with 50 Antenna



Definition of Data interface
No. Definition Type Description
1 +3.3V Power (VCC) DC 5~30V Input
2 GND Power (GND) Ground
3 TXD Output Connected with the RXD of external device
4 RXD Input Connected with the TXD of external device

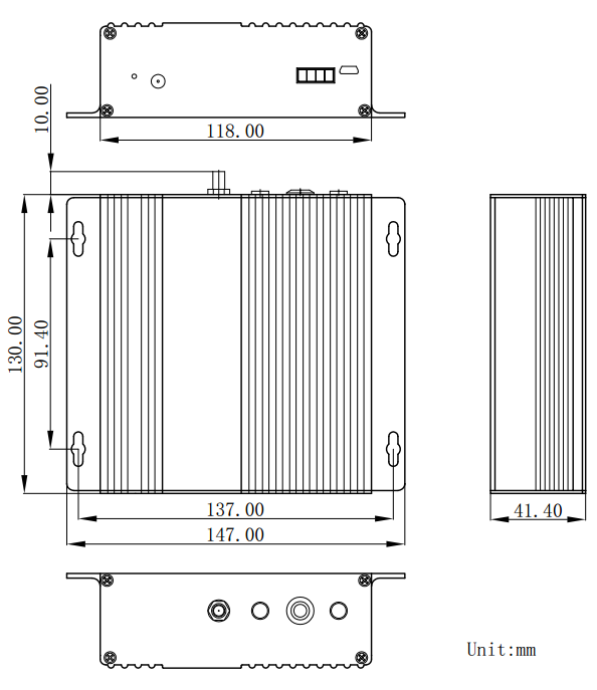

LoRaWAN网关LG1301-SE的机械尺寸
