LN610-X1:100mW LoRaWAN节点模块

LN610-X1是LoRaWAN节点模块。LG1301-PF/ LG1301-SE为LoRaWAN网关。如果LN610-X1内部有固件,则可以与LG1301一起构建LoRaWAN系统。
LN610-X1是硬件模块。它内部有一个MCU,但没有实现固件。如果实现固件,则支持以下特性,LG1301-PF或LG1301-SE均可与LN610-X1配合使用。这两个网关的详细情况请参考网关的数据表。

联系我们

分享产品:

规格书&附件下载

产品规格书:LN610-X1 100mW LoRaWAN Node Module(hardware only) V1.1.pdf

封装尺寸:LN610-X1 package.rar

性能参数
特点&应用
内部框图
引脚定义
机械尺寸(单位:mm)

Note: No LDO on board, the power supply should be : 1.8 –3.6V . 3.3V is suggested .

The following parameters is VCC=3.3V, with 50 ohm copper axis test instrumentation.

Parameter Min Typ  Max Unite Condition
Working Condition
Working voltage range 1.8 3.3 3.6 V
Temperature voltage -40   85
Current Consumption
Receiving current   18   mA @Vcc=3.3V
Transmitting current 110 120 130 mA Vcc=3.3V,Tx=20dBm
Sleep current   < 2 3 uA CS Active H
RF Parameter
TX Power 4 18 20 dBm
Receiving sensitivity -131 -132 -133 dBm @BW=125KHz,SF=10
2nd Harmonic radations   -45   dBm
 3rd Harmonic radiations   -50   dBm

产品特点

  • LoRaWAN protocol supported
  • 8 channel communication simultaneously
  • OTAA & ABP
  • Long range & Small size
  • ADR
  • EU433M / EU868M / KR920M / AS923M / CN780M/ CN470M / US915M / AS915M



应用领域

  • Smart city
  • Smart Metering ( Water, Electric, Gas meter )
  • Agricultural Monitoring
  • Irrigation control
  • Internet of Things (IoT)
  • M2M
  • Wireless Sensors
  • Wireless Alarm and Security Systems

LoRaWAN节点模块LN610-X1的内部框图

LoRaWAN节点模块LN610-X1的引脚

Pin Pin Name Type Description
1 CTS2 I/O UART2_CTS / GPIO
2 RTS2 I/O UART2_RTS / GPIO
3 TXD2 I/O UART2_TXD / GPIO
4 RXD2 I/O UART2_RXD / GPIO
5 NSS I/O SPI1_NSS / GPIO
6 SCK I/O SPI1_SCK / GPIO
7 MISO I/O SPI1_MISO / GPIO
8 MOSI I/O SPI1_MOSI / GPIO
9 PB0 I/O GPIO
10 PB1 I/O GPIO
11 PB2 I/O GPIO
12 TXD3 I/O UART3_TXD / GPIO
13 RXD3 I/O UART3_RXD / GPIO
14、16、27 GND GND Ground
15 ANT Antenna Connect with 50 ohm coaxial antenna
17 RTS1 I/O USART1_RTS / GPIO
18 CTS1 I/O USART1_CTS / GPIO
19 SWDIO I/O Firmware download / Debug
20 SWCLK I/O Firmware download / Debug
21 RX1 I/O USART1_RXD1 / GPIO
22 TX1 I/O USART1_TXD1 / GPIO
23 SCL1 I/O I2C1_SCL / GPIO
24 SDA1 I/O I2C1_SDA / GPIO
25 PC13 I/O GPIO
26 RESET Input Reset of MCU
28 VCC Power (VCC) Power Supply(Typical voltage)

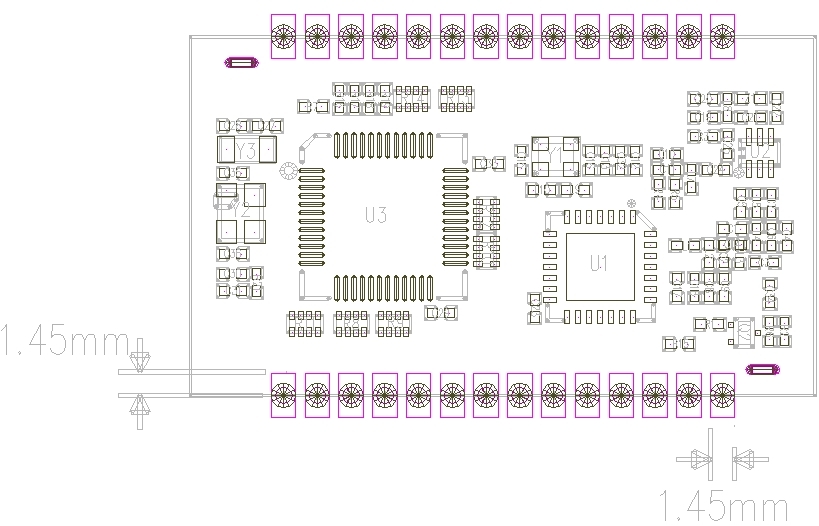

LoRaWAN节点模块LN610-X1的机械尺寸
